In-Car Anti FPV Vehicle-Mounted Drone Jammer Device For Defense Killer Blocker
| Place of Origin: | China |
| Brand Name: | EagleX or can be customized |
| Certification: | CE, FCC |
| Model Number: | In-Car Drone Jammer |
| Minimum Order Quantity: | 1pc |
| Delivery Time: | 7days |
| Payment Terms: | LC,TT,CAD,Alipay |
| Supply Ability: | According to the project |
|
Detail Information |
|||
Product Description

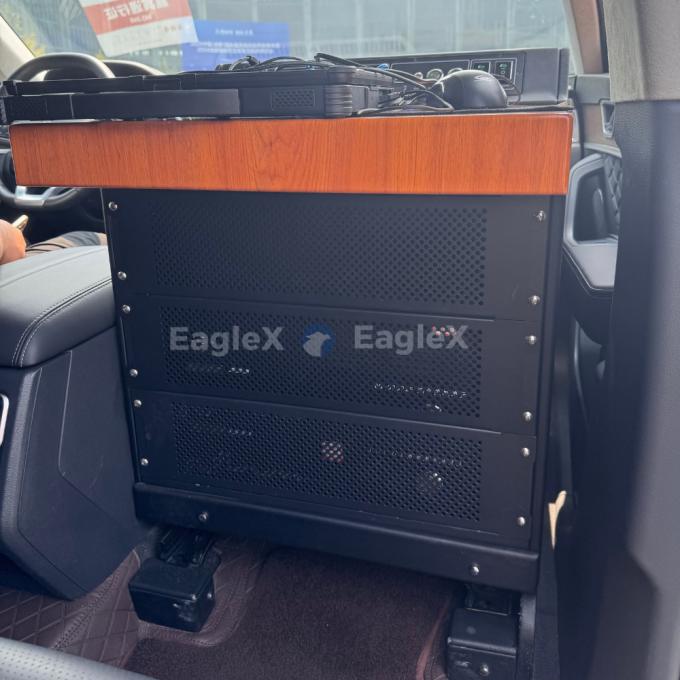

In-car Anti FPV Vehicle-mounted Drone Jammer Device Jamming System For Defense Killer Blocker

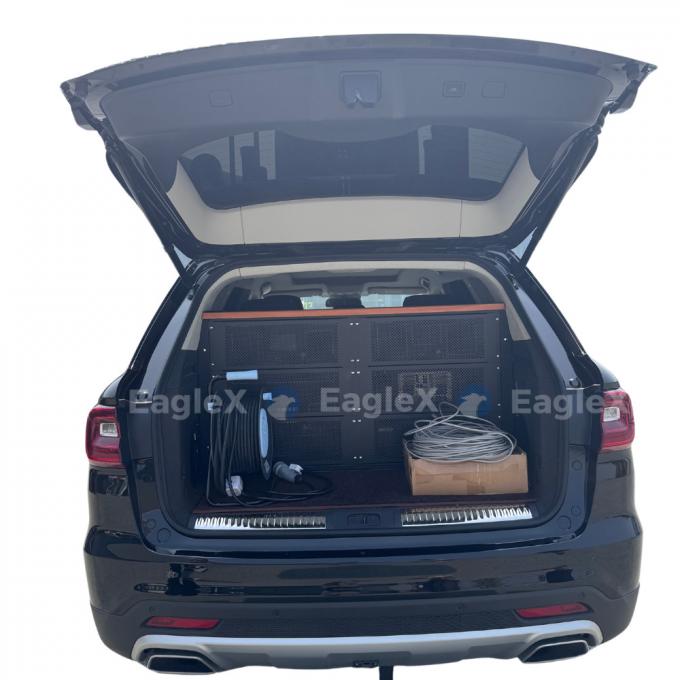

We provide finished vehicle exports (car + installed equipment), and we can also provide installation drawings + products
We can provide you with customized plans, please contact us! !
Key Features
| Feature | Description |
|---|---|
| Detection Range | 50 MHz to 6 GHz |
| Detection Radius | ≥ 5000 meters (dependent on working conditions) |
| Real-time Processing Bandwidth | 160 MHz |
| Distance Measurement Accuracy | ≤ 10% of the range |
| Horizontal Range | 0-360° |
| Simultaneous Detection Quantity | ≥ 10 drones |
| Countermeasure Method | Directional |
| Interference Frequency Bands | 900 MHz, 1.2 GHz, 1.5 GHz, 2.4 GHz *2, 5.2 GHz, 5.8 GHz *2 (custom bands available) |
| Countermeasure Distance | 1000 to 2000 meters (dependent on working conditions) |
| Response Time | ≤ 3 seconds |
Operating System Features
- Whitelist Support: Supported
- Unattended Operation: Supported
- Historical Path Playback: Supported
- Signal Recording: Supported
- Single Station Positioning: A0A
- Audio and Visual Alarm Function: Available
System Specifications
| Specification | Value |
|---|---|
| Protection Level | IP65 |
| Dimensions | 682 mm x 538 mm x 369 mm |
| Weight | 25 KG |
| Maximum Power Consumption | < 750W (frequency band countermeasure) |
| Operating Temperature | -30°C to 60°C |
Product Highlights
The EAGLEX-V1 is an advanced vehicle-mounted anti-drone system that integrates comprehensive detection and jamming capabilities. It features broad frequency detection, operating between 50 MHz and 6 GHz, enabling the identification of drones with bandwidths up to 40 MHz. With its self-learning capability, the system autonomously recognizes unknown drones, including those utilizing image transmission and frequency hopping techniques.
This system provides extensive interference coverage, targeting 95% of commercial drone communication frequencies through dual-polarized jamming for maximum effectiveness. It includes signal recording functionality to capture new drone models, enhancing detection accuracy and management.
Designed with a multi-antenna array and intelligent gain, the EAGLEX-V1 ensures optimal performance in complex environments. Additionally, it supports seamless integration with other radar systems and countermeasure devices, making it an essential solution for comprehensive vehicle-mounted drone defense.
