Customized Vehicle Mounted Drone Detection and Countermeasure System for Enhanced Security
Product Details
| Place of Origin: | China |
| Brand Name: | EagleX or can be customized |
| Certification: | CE, FCC |
| Model Number: | V1 |
Payment & Shipping Terms
| Minimum Order Quantity: | 1pc |
| Delivery Time: | 7days |
| Payment Terms: | LC,TT,CAD,Alipay |
| Supply Ability: | According to the project |
|
Detail Information |
|||
Product Description

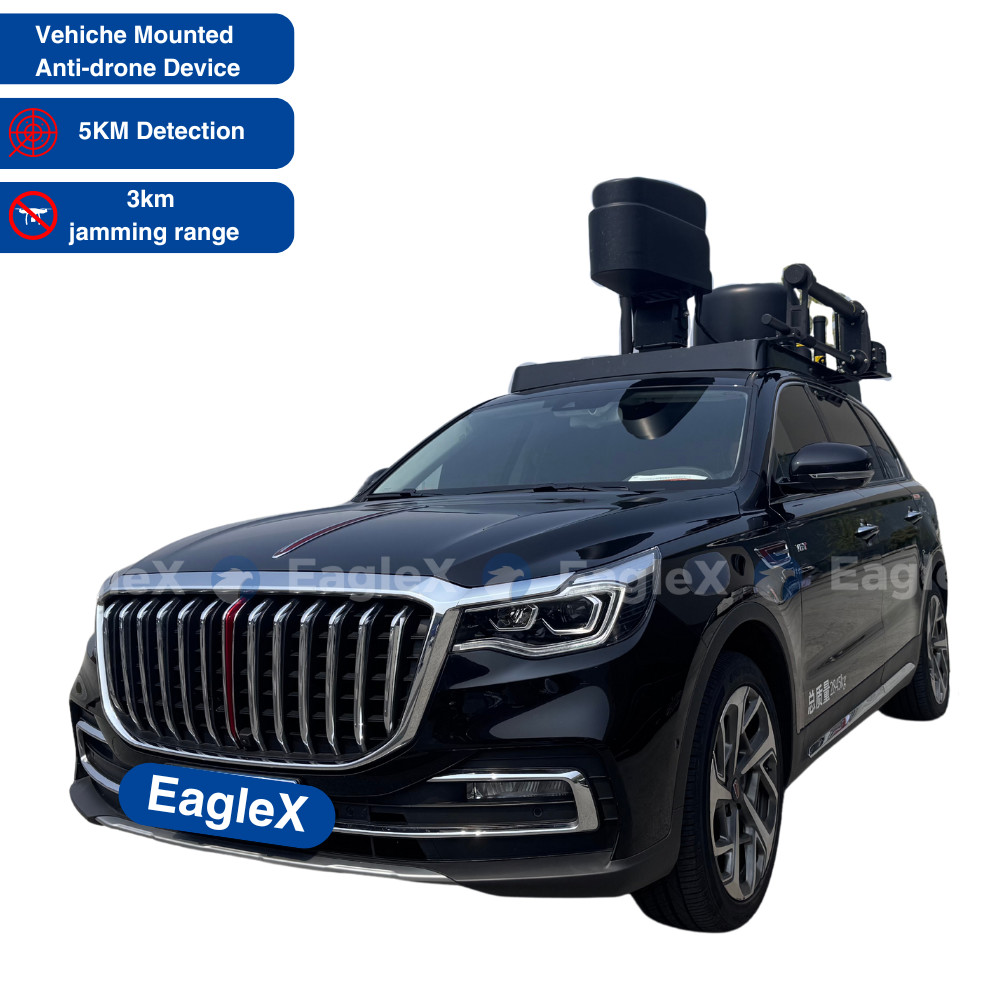

Customized Vehicle-Mounted Drone Detection and Countermeasure System for Enhanced Security

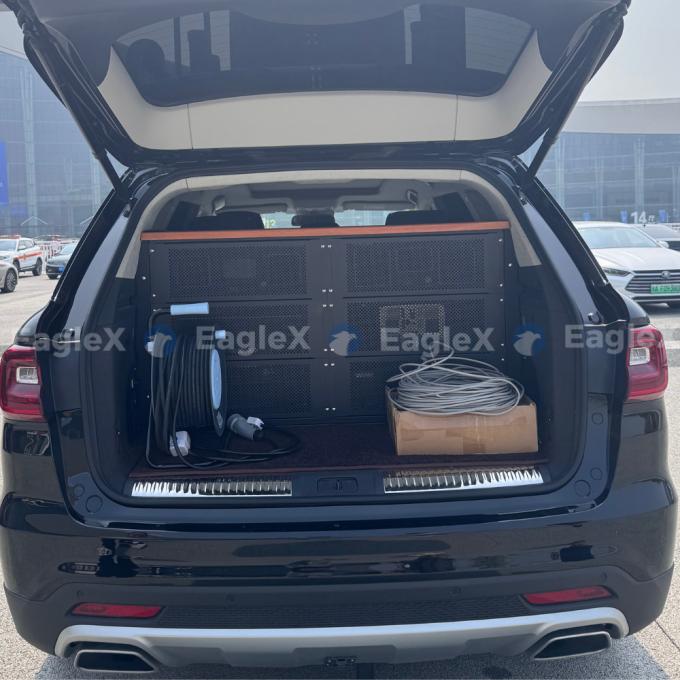

We provide finished vehicle exports (cars + installed equipment), and we can also provide installation drawings + products
For specific details, please contact us! !
Key Features
| Feature | Description |
|---|---|
| Detection Range | 50 MHz to 6 GHz |
| Detection Radius | ≥ 5000 meters (dependent on working conditions) |
| Real-time Processing Bandwidth | 160 MHz |
| Distance Measurement Accuracy | ≤ 10% of the range |
| Horizontal Range | 0-360° |
| Simultaneous Detection Quantity | ≥ 10 drones |
| Countermeasure Method | Directional |
| Interference Frequency Bands | 900 MHz, 1.2 GHz, 1.5 GHz, 2.4 GHz *2, 5.2 GHz, 5.8 GHz *2 (custom bands available) |
| Countermeasure Distance | 1000 to 2000 meters (dependent on working conditions) |
| Response Time | ≤ 3 seconds |
Operating System Features
- Whitelist Support: Supported
- Unattended Operation: Supported
- Historical Path Playback: Supported
- Signal Recording: Supported
- Single Station Positioning: A0A
- Audio and Visual Alarm Function: Available
System Specifications
| Specification | Value |
|---|---|
| Protection Level | IP65 |
| Dimensions | 682 mm x 538 mm x 369 mm |
| Weight | 25 KG |
| Maximum Power Consumption | < 750W (frequency band countermeasure) |
| Operating Temperature | -30°C to 60°C |
Product Features
- Integrated Detection and Jamming: Combines detection and jamming into one device.
- Broad Frequency Detection: Passive detection from 50 MHz to 6 GHz, identifying drones with bandwidths up to 40 MHz.
- Self-Learning Capability: Independently learns and identifies unknown drones, including those using image transmission and frequency hopping.
- Extensive Interference Coverage: Targets 95% of commercial drone communication frequencies with dual-polarized jamming for maximum impact.
- Signal Recording Functionality: Records new drone models for improved detection, learning, and management.
- Advanced Design Features: Utilizes a multi-antenna array and intelligent gain for performance in complex scenarios.
- Networking Support: Integrates seamlessly with other radar and countermeasure systems.
