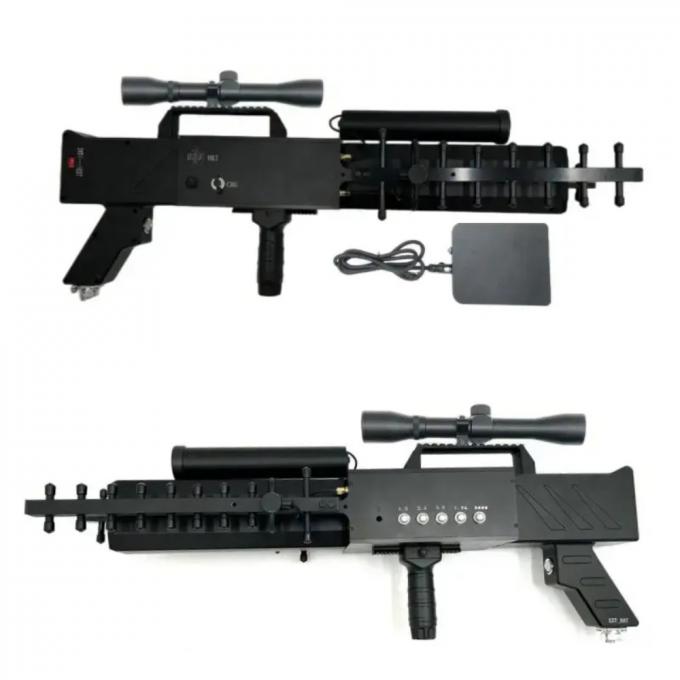

2KM Anti Drone Jamming Gun 433MHz 900MHz 1.2G 1.5G 2.4G 5.8G Drone Frequency Scrambler
| Place of Origin: | China |
| Brand Name: | EagleX or can be customized |
| Certification: | CE, FCC |
| Minimum Order Quantity: | 1pc |
| Delivery Time: | 7days |
| Payment Terms: | LC,TT,CAD,Alipay |
| Supply Ability: | According to the project |
|
Detail Information |
|||
| Place of Origin | China | Brand Name | EagleX or can be customized |
|---|---|---|---|
| Certification | CE, FCC | Band: | 5-Band/ 6-Band/ 8-Band/ |
| Output Power: | 100W~120w | Battery Capacity: | 90-120mins(without Backup Battery) 1. 29.4V 7000mAh Li-Polymer Battery 2. 29.4V 10.5AH Li-Polymer (backup Battery) |
| Working Temperature: | -20ºC To +55ºC | Highlight: | 433MHz Drone Frequency Scrambler,900MHz Drone Frequency Scrambler,2KM Anti Drone Jamming Gun |
Product Description
2KM Countermeasure Distance 5-Channel 900MHz 1.2G 1.5G 2.4G 5.8G Drone Signal Jammer Portable Anti-Drone Jamming Gun
Frequency Bands and Target Devices
| Frequency Band | Target Devices |
|---|---|
| 1.5G | Drone Control Signals |
| 2.4G | Wi-Fi, Drone Control Signals |
| 5.8G | Wi-Fi, Drone Control Signals |
| 900M | Drone Navigation Systems |
| 1.2G | Drone Control Signals |
| 433M | Long-Range Drone Control |
| 5.2G | Wi-Fi, Drone Control Signals |
| 800M | Drone Navigation Systems |
This drone countermeasure gun supports 5, 6, and 8 frequency bands, with an output power between 100W and 120W. Its operating frequency can be customized according to customer needs. The specific frequency configuration is as follows:
5-band: 1.5G, 2.4G, 5.8G, 900M, 1.2G
6-band: 1.5G, 2.4G, 5.8G, 900M, 1.2G, 433M
8-band: 1.5G, 2.4G, 5.8G, 5.2G, 800M, 900M, 1.2G, 433M
In terms of battery capacity, the device can work continuously for 90 to 120 minutes without using a backup battery. The device comes standard with a 29.4V 7000mAh lithium polymer battery, and a backup battery (29.4V 10.5AH lithium polymer battery) can also be selected.
The device size is 715mm x 175mm x 256mm and weighs about 4.3kg (5-band configuration). The operating temperature range is wide, from -20℃ to 55℃, adapting to various environmental conditions.
The product packaging can be a carton or an air box.
