30W-50W FPV Drone Jammer 900MHz 2.4GHz 5.8GHz Frequency Jammer For Drones
| Place of Origin: | China |
| Brand Name: | EagleX or can be customized |
| Certification: | CE, FCC |
| Model Number: | EXLY-C3 |
| Minimum Order Quantity: | 1pc |
| Delivery Time: | 7days |
| Payment Terms: | LC,TT,CAD,Alipay |
| Supply Ability: | According to the project |
|
Detail Information |
|||
Product Description
30-50W FPV Drone Jammer 900MHz, 2.4GHz, 5.8GHz 3-Band Portable Handheld Anti-Drone UAV Device Vehicle-Mounted Solutions
Product Features:
- Portable and Handheld: Maximizes mobility and ease of use.
- Dual-Purpose: Can be used as a handheld device or mounted on a vehicle.
- Triple-Channel: Supports three independent channels.
- Built-in Boost Module: Enhances device performance.
- External Fan: Improves heat dissipation.
Product Specifications:
| Item | Specification |
|---|---|
| Output Channels | 3 Channels |
| Frequency | Customizable, commonly used frequencies include 900MHz, 2.4GHz, 5.8GHz (Customizable) |
| Power | 30-50W |
| Main Unit Size | 35 cm x 24 cm x 15 cm |
| Antenna Size | 41 cm x 2 cm |
| Weight | 8 kg |
| Package Size | 41 cm x 32 cm x 26 cm |
Frequency and Corresponding Functions:
| Frequency | Function |
|---|---|
| 900MHz | GPS Jamming |
| 2.4GHz | Wi-Fi/Bluetooth Jamming |
| 5.8GHz | FPV (First Person View) Jamming |
Detailed Description:

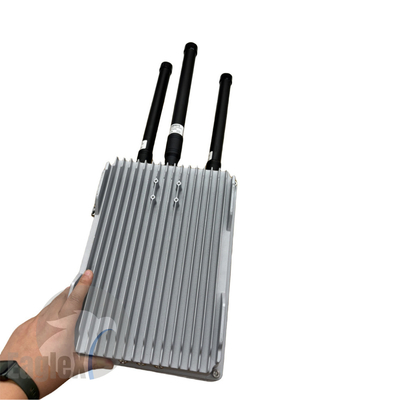

The EXLY-C3 is a versatile, portable, handheld anti-drone device designed for most drones on the market and DJI and Autel drones, with a particular focus on countering FPV drones. It features three output channels, allowing users to customize frequencies for optimal jamming results. Common frequencies include 900MHz for GPS jamming, 2.4GHz for Wi-Fi/Bluetooth jamming, and 5.8GHz for FPV jamming. Power output ranges from 30 to 50 watts, depending on the desired range.
The EXLY-C3 includes a built-in boost module to enhance overall performance and an external fan to improve heat dissipation, extending the life of the device. It weighs 8 kg and is designed to be portable and can be quickly adapted for vehicle installation. The main unit measures 35 cm x 24 cm x 15 cm, and the antenna measures 41 cm x 2 cm. The package measures 41 cm x 32 cm x 26 cm for easy transportation and storage.
The device is suitable for a variety of scenarios, especially those that require rapid response and mobility, such as security patrols, law enforcement operations, border patrols, and military exercises. Users can customize the frequency according to their specific needs to ensure the best jamming effect. Please contact us!
