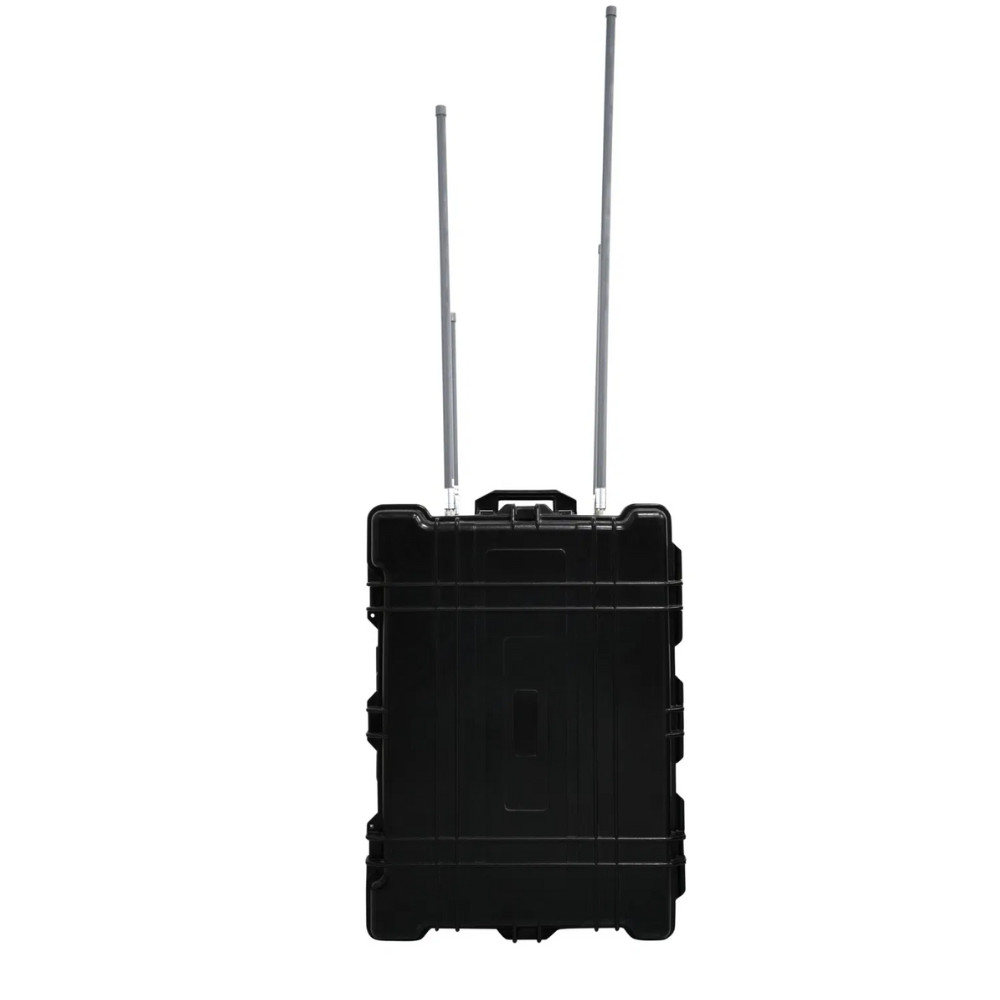

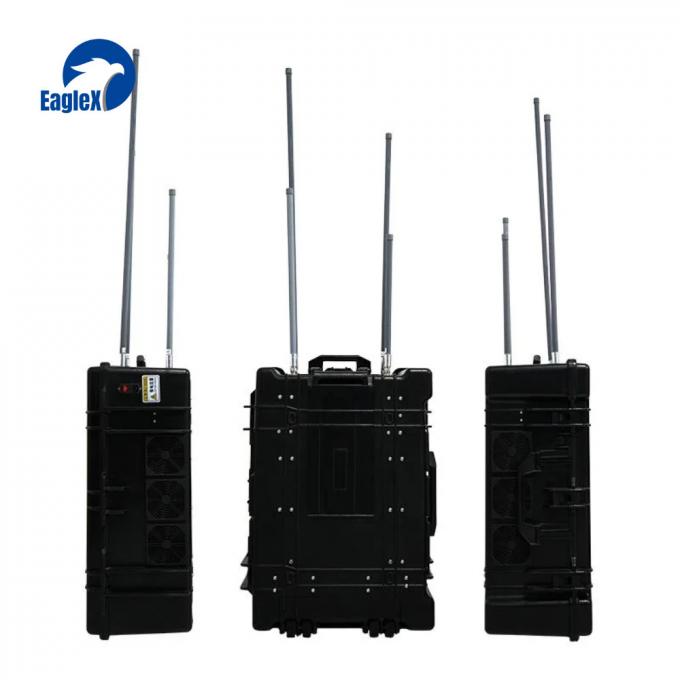

1.5KM Distance Portable Anti Drone Jammer 20MHz-6000MHz Drone Signal Scrambler
| Place of Origin: | China |
| Brand Name: | EagleX or can be customized |
| Certification: | CE, FCC |
| Minimum Order Quantity: | 1pc |
| Delivery Time: | 7days |
| Payment Terms: | LC,TT,CAD,Alipay |
| Supply Ability: | According to the project |
|
Detail Information |
|||
Product Description
>1.5KM Distance Interference 4-Channel Portable Anti-Drone Jammer Pull Box Type 20MHz-6000MHz Mobile Signal Drone Jammer
Portability:
The whole machine is easy to carry, with a total weight of no more than 60kg, suitable for mobile deployment.
Frequency band coverage:
It can cover the full frequency band of 20MHz-6000MHz, ensuring effective interference to various targets.
Environmental adaptability:
Operating temperature range: -20ºC to +45ºC, adapting to different environmental conditions.
Storage temperature range: -30ºC to +55ºC, ensuring the storage safety of the device in extreme environments.
Power supply mode:
Built-in battery and external AC220V/50Hz power supply.
The battery can be charged at the same time when powered by an external power supply.
The battery and external power supply can be switched seamlessly without affecting the normal operation of the device.
Transmitting power:
The maximum transmitting power is ≤450W, ensuring the effective interference range.
Continuous working time:
It can work continuously for ≥60 minutes at normal temperature and maximum power consumption, meeting the needs of long-term operation.
Countermeasure capability:
Drone interference distance: ≥1500 meters (omnidirectional antenna). It is determined according to the local terrain and building conditions, and can interfere with multiple types of targets at the same time to ensure comprehensive protection effects.
| No. | Evaluation Projects | Performance Requirements |
|---|---|---|
| 1 | Portable Usage | The whole machine meets the requirements of portable use; towing weight is not more than 60kg |
| 2 | Coverage Channels | Full channel coverage from 20MHz-6000MHz |
| 3 | Environmental Adaptability | Working at low temperature: -20ºC |
| 4 | Low Temperature Storage | Storage temperature: -30ºC |
| 5 | Working at High Temperature | Working temperature: +45ºC |
| 6 | High Temperature Storage | Storage temperature: +55ºC |
| 7 | Vibration Requirements | Meet GJB150A transportation vibration requirements |
| 8 | Power Supply Method |
|
| 9 | Transmitting Power | ≤450W |
| 10 | Total System Weight | ≤60kg |
| 11 | Continuous Working Time | ≥60 minutes (Normal temperature, maximum power consumption state) |
| 12 | Single Class Target Omni-Directional Jamming Distance |
|
| 13 | Mobile Communication | ≥50m (omni-directional antenna) |
| 14 | Mobile Communication Wall Jamming Capability | ≥10m (omni-directional antenna) |
| 15 | Unmanned Aerial Vehicle | ≥1500m (omni-directional antenna) |
| 16 | Unmanned Vehicle | ≥55m (omni-directional antenna) |
| 17 | Simultaneous Omni-Directional Jamming Capability for Multiple Types of Targets | Ability to jam multiple types of targets simultaneously |
| 18 | System Response Time | No more than 5 seconds (from power on to normal system working time) |
| 19 | Usage Requirements |
|
| 20 | Package |
|
