Airport Security Drone Detection 3/5/8/10KM FPV Drone Detector for Wide Frequency Range Surveillance
| Brand Name: | EagleX |
| Model Number: | CC100 |
| Minimum Order Quantity: | 1 |
|
Detail Information |
|||
| Brand Name | EagleX | Model Number | CC100 |
|---|---|---|---|
| Detection Radius: | 3-10km (varies By Drone Model; Internal Military Model Differences May Exist) | Protection Level: | IP66 |
| Attack Radius: | 1~3 Km (varies By Drone Model; Internal Military Model Differences May Exist) | Attack Frequency Bands: | 2.4 GHz, 5.8 GHz (Other Frequency Can Be Customized) |
| Detection Frequency: | 30 MHz ~ 6 GHz | Response Time: | ≤2 S |
| Positioning Method: | Single Station Drone/target Precise Positioning And Trajectory Tracking | Detection Coverage: | 360° Full Coverage |
Product Description
Airport Security Drone Detection 3/5/8/10KM FPV Drone Detector for Wide Frequency Range Surveillance

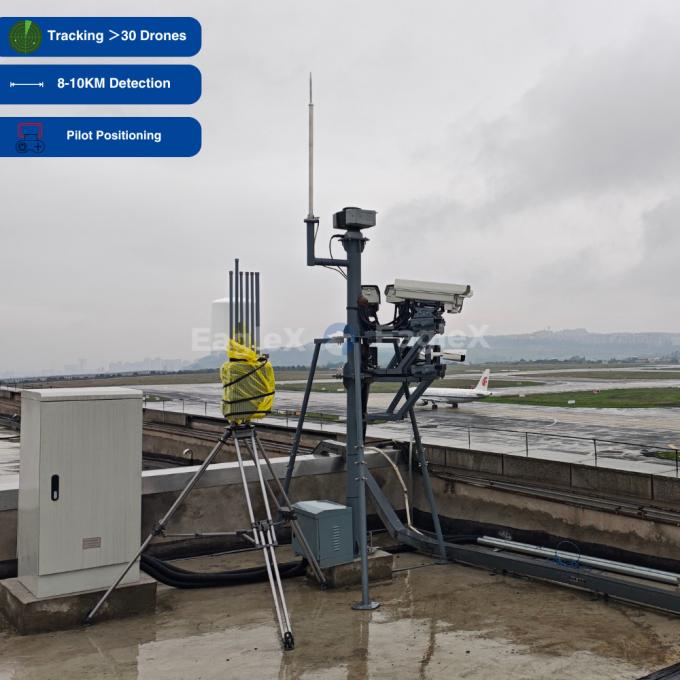

The CC100 Detector is an advanced drone security system specifically designed for airports. It accurately identifies and tracks UAVs across a wide frequency range, offering precise geolocation and real-time trajectory monitoring. With sophisticated signal analysis and the ability to detect multiple drones simultaneously, the CC100 ensures comprehensive coverage and high measurement accuracy to maintain airport safety.
Backed by extensive experience in airport security projects, we provide reliable and effective solutions tailored to your needs. Contact us today to secure your airport with the CC100 Detector!
Technical Specifications
| Parameter | Description |
|---|---|
| Detection Range | 30 MHz ~ 6 GHz |
| Key Frequency Bands | 2.4 GHz, 5.2 GHz, 5.8 GHz, 433 MHz, 900 MHz, 1.4 GHz (Other frequency bands configurable) |
| Detection Radius | 3-10 km (varies by drone model; internal military model differences may exist) |
| Response Time | ≤2 s |
| Detection Coverage | 360° full coverage |
| Measurement Accuracy | ≤1° (RMS) |
| Simultaneous Detections | ≥30 targets |
| Positioning Method | Single station drone/target precise positioning and trajectory tracking |
| Positioning Accuracy | ≤3 m (RMS) |
| Wideband Jamming | Supported |
| Jamming Frequency Bands | 2.4 GHz, 5.2 GHz, 5.8 GHz, 1.5 GHz, 0.9 GHz (Other frequency bands configurable) |
| Jamming Radius | 1~3 km (varies by drone model; internal military model differences may exist) |
| Precision Attack | Supported |
| Attack Frequency Bands | 2.4 GHz, 5.8 GHz |
| Attack Radius | 1~3 km (varies by drone model; internal military model differences may exist) |
| Protection Level | IP66 |
| Main Unit Weight | ≤35 kg |
Product Features
-
Passive Detection: Identifies drone signals without emitting electromagnetic signals, allowing stealth operation. This minimizes detection risk and is ideal for covert missions in sensitive environments.
-
Accurate Positioning: Provides precise geolocation and trajectory tracking using advanced algorithms, ensuring effective threat assessment and response.
-
Target Identification: Classifies different drone models and frequency bands to enable tailored countermeasures, improving system accuracy and reducing unnecessary interference.
-
Precision Attack: Neutralizes specific signals or drones with minimal collateral interference, ideal for crowded environments or public events.
-
Blacklist/Whitelist Function: Allows one-click management of drone access, ensuring authorized drones can operate while unauthorized ones are jammed.
-
Compatibility: Supports various drone models, including WiFi, hobby, fixed-wing, and DIY drones, offering versatility across different needs.
-
Applications: Suitable for military, public security, government facilities, airports, energy infrastructures, major events, and other security contexts. Designed for challenging environments, providing reliable protection in any scenario.
--------------------------------------------
For more technical support, please contact us now! !
