8-10KM FPV UAV Drone Detection Range Handheld Drone Detector With Real-Time Pilot Positioning
| Place of Origin: | China |
| Brand Name: | EagleX or can be customized |
| Certification: | CE, FCC |
| Model Number: | J650 |
| Minimum Order Quantity: | 1pc |
| Delivery Time: | 7days |
| Payment Terms: | LC,TT,CAD,Alipay |
| Supply Ability: | According to the project |
|
Detail Information |
|||
| Place of Origin | China | Brand Name | EagleX or can be customized |
|---|---|---|---|
| Certification | CE, FCC | Model Number | J650 |
| Detection Distance: | 8000m-10000m | Main Detection Bands: | 900MHz，1.4GHz，2.4GHz，5.2GHz，5.8GHz |
| Detection Quantity: | >20 Drones | Number Of Drone Trajectories: | *>10 Drones |
Product Description
8-10KM FPV UAV Drone Detection Range Handheld Drone Detector With Real-Time Pilot Positioning
Product Overview

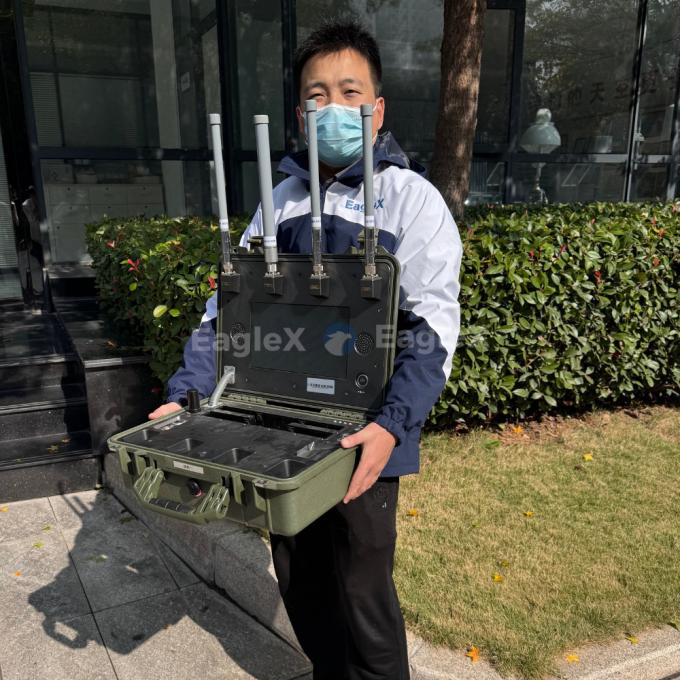

The J650 Portable Drone Detector is a suitcase-style device designed specifically for drone detection and identification. Featuring easy deployment, mobile compatibility, early warning alerts, precise positioning, and trajectory tracking, it's an ideal solution for securing your airspace. When unauthorized drones enter protected areas, the J650 immediately raises an alarm, determines the real-time location of both the drone and its pilot through CRPC message-level protocol decoding, and records the drone's flight path.
Key Features
-
Passive Detection: Operates by passively receiving signals without emitting any electromagnetic waves, ensuring zero impact on the surrounding environment.
-
Trajectory Tracking: Supports multi-target drone trajectory tracking and locates pilots (remote controls), providing comprehensive airspace monitoring.
-
Precise Identification: Accurately identifies different drones of the same brand, model, and frequency band by their unique serial numbers.
-
Cost-Effective: A single device offers full functionality, capable of standalone operation, easy to use and deploy, and can coordinate with other equipment if needed.
-
Single Device Positioning: One unit can simultaneously locate both drones and pilots, simplifying your drone detection system.
-
User-Friendly: Simple one-click operation; the system runs automatically, performing real-time detection and alarm functions without the need for constant supervision.
Technical Specifications
| Specification | Details |
| Main Bands | 900 MHz, 1.4 GHz, 2.4 GHz, 5.2 GHz, 5.8 GHz |
| Detection Radius | 0–8 km |
| Maximum Detection Quantity | >20 drones simultaneously |
| Number of Drone Trajectories | >10 drones |
| Power Supply | Built-in lithium battery or mains input |
| Endurance | >12 hours (under full-load conditions) |
| Dimensions | 470 mm × 357 mm × 176 mm (±2 mm) |
| Weight | <13 kg |
| Operating Temperature | -40°C to 65°C |
| IP Rating | IP66 (dust-tight and protected against powerful water jets) |
Applications
-
Critical Infrastructure Protection: Secure airports, nuclear power plants, power grids, and other sensitive locations from unauthorized drone activities.
-
Large Event Security: Ensure the safety of sports events, concerts, exhibitions, and other large gatherings with reliable drone surveillance.
-
Border and Coastal Monitoring: Assist law enforcement and security agencies in monitoring and intercepting illegal drone operations.
Contact us for more technical support!
