Fixed And Vehicle Mounted FPV Drone Jammer Jamming Multi-Frequency Anti-Drone Defense
| Place of Origin: | China |
| Brand Name: | OEM/ODM |
| Certification: | CE, FCC |
| Model Number: | C730 |
| Minimum Order Quantity: | 1pc |
| Delivery Time: | 7days |
| Payment Terms: | LC,TT,CAD,Alipay |
| Supply Ability: | According to the project |
|
Detail Information |
|||
| Place of Origin | China | Brand Name | OEM/ODM |
|---|---|---|---|
| Certification | CE, FCC | Model Number | C730 |
| Interference Frequency: | 50MHz~6000MHz | Drone Interference Distance: | 1000M-3000M |
| Direction Of Defense: | Omnidirectional 360° | Whole Machine Power: | 200W/300W/400W(can Be Customized) |
| Product Dimensions: | 66 X 66 X 30 Cm | Product Mass: | 20 Kg |
| Highlight: | Vehicle Mounted FPV Drone Jammer,Multi-Frequency FPV Drone Jammer,Anti-Drone Defense FPV Drone Jammer |
||
Product Description
Fixed and Vehicle-Mounted FPV Drone Jammer Jamming Multi-Frequency Anti-Drone Defense
Technical Specifications
| Jamming Frequency | Function Description |
|---|---|
| 400-500 MHz | Disruption of drone control channels |
| 500-600 MHz | Attenuation of drone control signals |
| 600-650 MHz | Impairment of drone communication pathways |
| 650-700 MHz | Inhibition of communication between UAV and remote operator |
| 700-800 MHz | Degradation of telemetry signal integrity |
| 800-900 MHz | Disruption of telemetry channels critical for drone operation |
| 900-1000 MHz | Obstruction of drone navigation functionalities |
| 1080-1240 MHz | Impediment to drone navigational capabilities |
| 1220-1360 MHz | Disruption of GPS-based positional data |
| 2.4G/5.2G/5.8G | Neutralization of image transmission, initiation of retreat, enforcement of controlled descent |
| Product Dimensions | Product Mass |
| 66 x 66 x 30 cm | 20 kg |
| Jamming Coverage | Base Configuration |
| 500-1500 m | Magnetic Attachment |
| Power Source | System Power Consumption |
| Vehicle Battery | 180-400 W |
| Jamming Medium | Deployment Scenarios |
| Electromagnetic Waves | Military operations, National Defense, Military Industrial Complex, Armed Police, Traffic Management, Air Defense for Large Venues, etc. |
Product Features

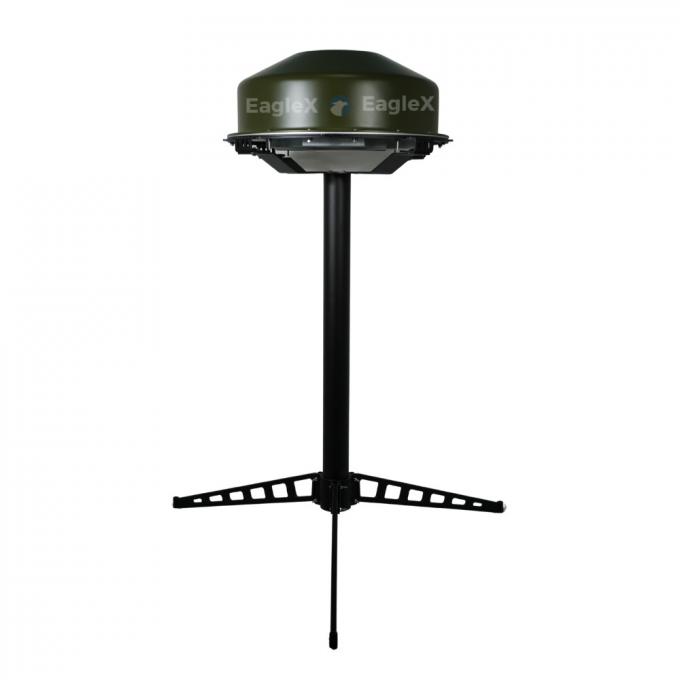

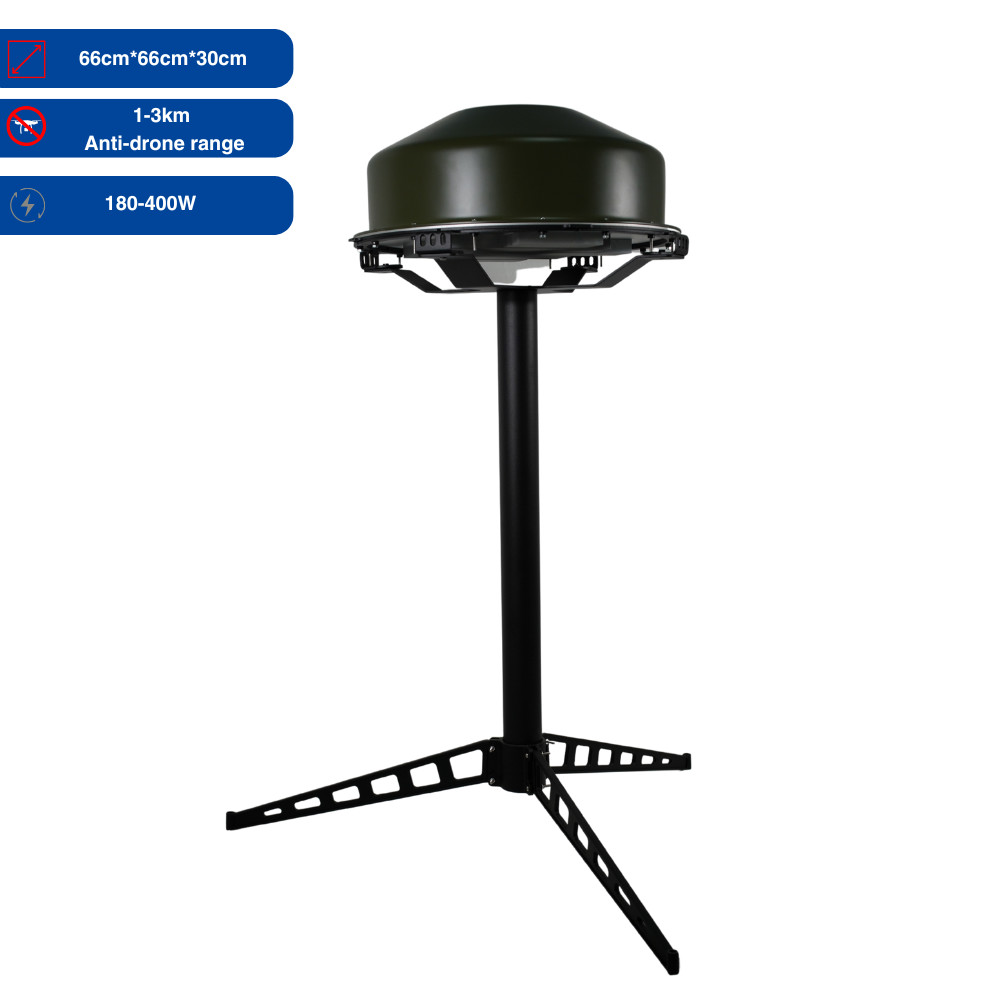

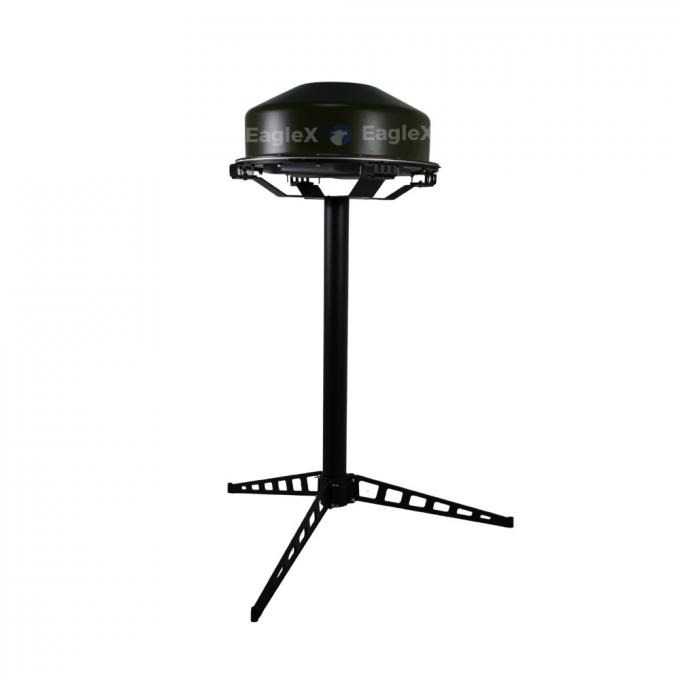

The C730 Fixed and Vehicle-Mounted Electromagnetic Jamming Ball is an advanced counter-drone solution designed for versatile deployment. Primarily configured as a fixed jamming unit, it can also be mounted on vehicles for mobile applications. The system features a magnetic roof attachment, facilitating rapid setup for vehicular use. It operates across a wide spectrum of frequency bands, encompassing 400-1360 MHz and 2.4G/5.2G/5.8G, thereby neutralizing critical UAV functionalities such as image transmission, telemetry, and navigation, while effectively compelling the disengagement or forced descent of unauthorized drones.
This omnidirectional jamming apparatus offers robust protection within a radius of up to 1500 meters, making it an indispensable tool for applications ranging from military and national defense to armed police and traffic control, as well as airspace protection over large public venues. The system is powered by a vehicle battery, consuming between 180-400W, making it both efficient and versatile for fixed and mobile drone mitigation requirements.

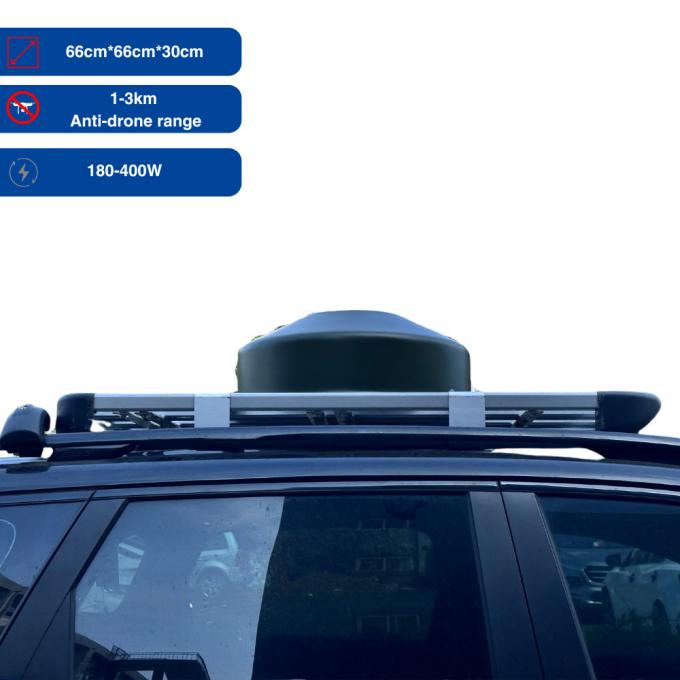

Fixed and Vehicle-Mounted Drone Jamming System with optional magnetic roof attachment for flexible deployment.
Broad Spectrum Frequency Jamming: Operates across 400-1360 MHz, 2.4G, 5.2G, and 5.8G bands for comprehensive UAV counteraction.
Advanced Drone Countermeasure: Capable of interrupting image transmission, enforcing UAV retreat, or inducing controlled landings.
Omnidirectional Coverage: Effective range of up to 1500 meters, providing extensive area defense against aerial threats.
Versatile Deployment Options: Designed for fixed installation as well as mobile use in military, national defense, law enforcement, traffic management, and event security.
Optimized Power Efficiency: Powered by a vehicle battery, consuming 180-400W, ensuring operational efficiency for both fixed and mobile applications.
----------------------------------
Who Are We?
EAGLEX Technology Co., Ltd., based in Shenzhen, China, is a leading company specializing in drone defense technologies. We focus on a wide range of products, including drone detectors, drone jammers, integrated drone reconnaissance and countermeasure systems, drone detection radars, and RF modules.
Our advanced research center is equipped with the latest software and hardware, including three 5G microwave anechoic chambers, four 3D microwave anechoic chambers, HOMDE & SCMWAR2 comprehensive testers, network analyzers (5071/8753E/A333/A338), AGILENT E4438C comprehensive testers, and 8960 comprehensive testers. These state-of-the-art facilities enable us to innovate and deliver high-quality solutions in the drone defense field.
We warmly welcome you to visit our production lines and see our commitment to excellence firsthand.
Please feel free to contact us—we're here to support your drone defense needs.
