IP66 Protection Level Drone Detector for Wide Frequency Coverage and High Accuracy in Passive Radio Surveillance
| Brand Name: | EagleX |
| Model Number: | CC100 |
| Minimum Order Quantity: | 1 |
|
Detail Information |
|||
| Brand Name | EagleX | Model Number | CC100 |
|---|---|---|---|
| Protection Level: | IP66 | Attack Radius: | 1~3 Km (varies By Drone Model; Internal Military Model Differences May Exist) |
| Attack Frequency Bands: | 2.4 GHz, 5.8 GHz (Other Frequency Can Be Customized) | Detection Frequency: | 30 MHz ~ 6 GHz |
| Detection Radius: | 3-10km (varies By Drone Model; Internal Military Model Differences May Exist) | Response Time: | ≤2 S |
| Positioning Method: | Single Station Drone/target Precise Positioning And Trajectory Tracking | Detection Coverage: | 360° Full Coverage |
| Highlight: | High Accuracy Drone Detector,IP66 Protection Level Drone Detector,Wide Frequency Coverage Drone Detector |
||
Product Description
Drone Detector for Passive Radio Surveillance, Wide Frequency Coverage, and High Accuracy
Technical Specifications
| Parameter | Description |
|---|---|
| Detection Range | 30 MHz ~ 6 GHz |
| Key Frequency Bands | 2.4 GHz, 5.2 GHz, 5.8 GHz, 433 MHz, 900 MHz, 1.4 GHz (configurable) |
| Detection Radius | ≤3 km (varies by drone model) |
| Response Time | ≤2 s |
| Detection Coverage | 360° |
| Measurement Accuracy | ≤1° (RMS) |
| Simultaneous Detections | ≥30 targets |
| Positioning Method | Single station positioning and tracking |
| Positioning Accuracy | ≤3 m (RMS) |
Product Overview

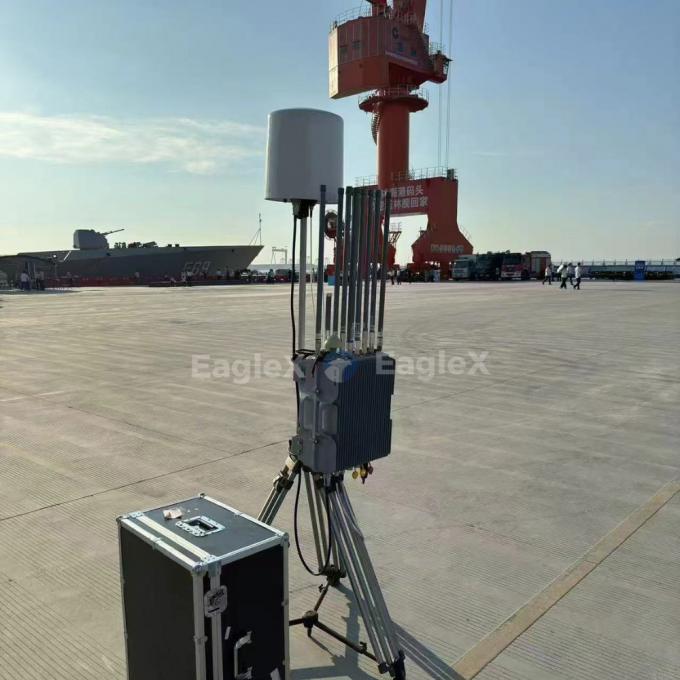

The CC100 Detector is a state-of-the-art drone detection system designed to identify and track UAVs within a wide frequency range. With precise geolocation, real-time trajectory tracking, and advanced signal analysis, the CC100 provides comprehensive drone detection coverage for a variety of operational needs. Its ability to detect multiple targets simultaneously and high measurement accuracy make it a reliable solution for ensuring security in sensitive environments.
In certain locations, such as hydropower stations, water treatment plants, and substations, interference devices are not permitted due to regulatory and operational constraints. For these areas, the CC100 uses passive radio detection technology, which allows it to identify drone signals without emitting any radio frequency interference. This passive detection capability ensures compliance with local regulations while maintaining effective surveillance and security coverage.
For more technical support, please contact us now! !
