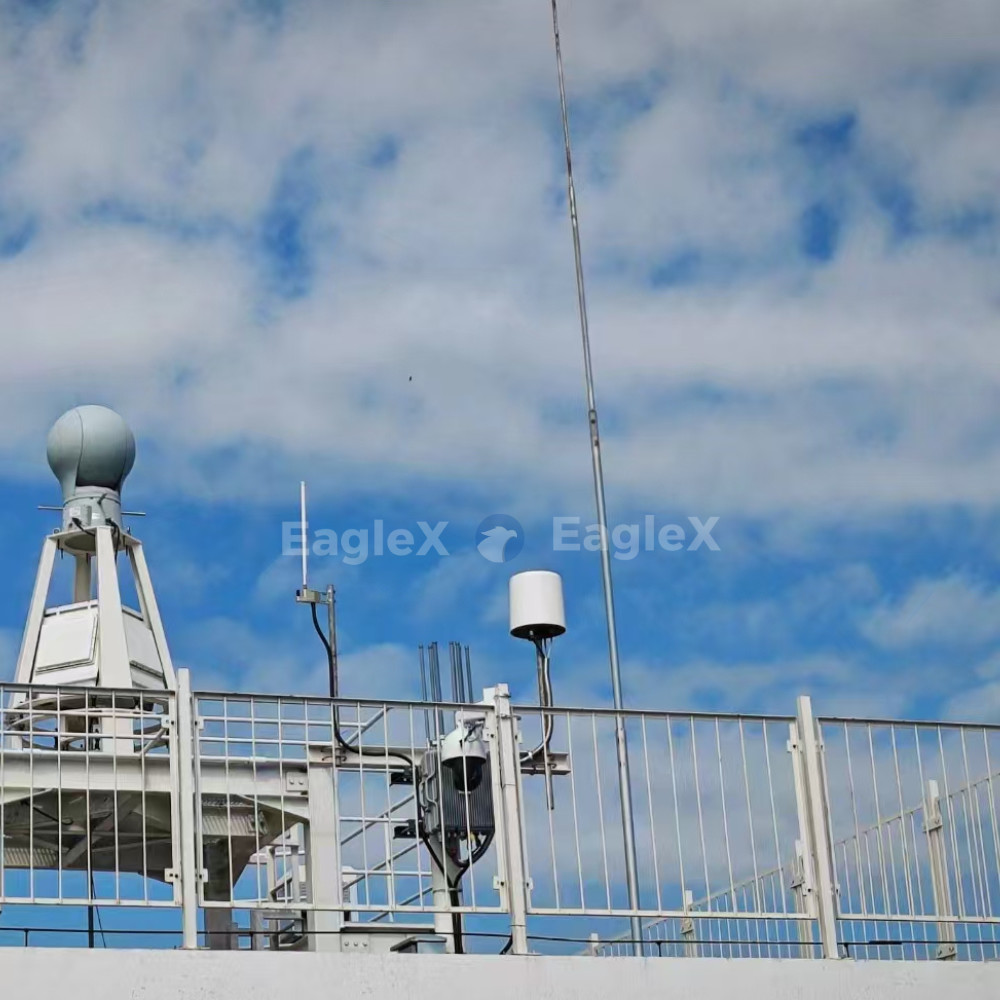

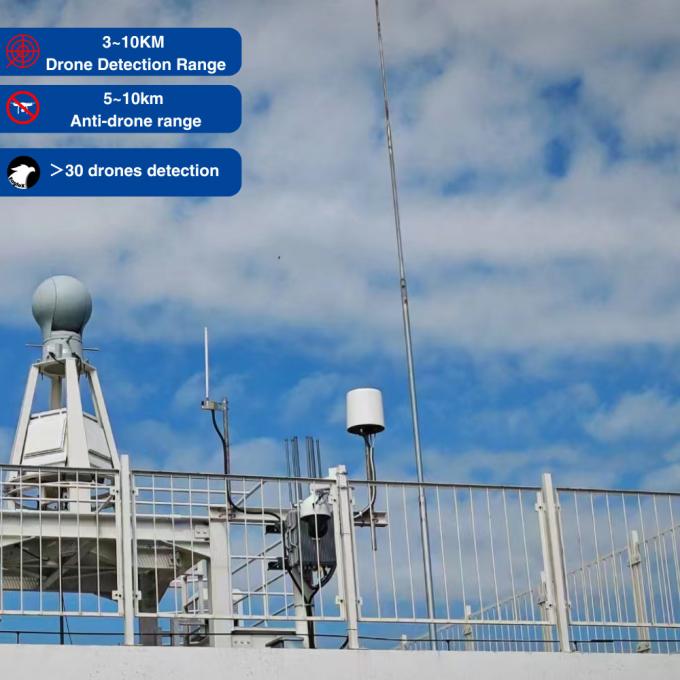

3-10KM FPV Drone Jammer Detection and Jamming System for Comprehensive Protection
| Brand Name: | EagleX |
| Model Number: | CC100 |
| Minimum Order Quantity: | 1 |
|
Detail Information |
|||
| Brand Name | EagleX | Model Number | CC100 |
|---|---|---|---|
| Attack Frequency Bands: | 2.4 GHz, 5.8 GHz (Other Frequency Can Be Customized) | Attack Radius: | 1~3 Km (varies By Drone Model; Internal Military Model Differences May Exist) |
| Detection Frequency: | 30 MHz ~ 6 GHz | Detection Radius: | 3 Km (varies By Drone Model; Internal Military Model Differences May Exist) |
| Response Time: | ≤2 S | Detection Coverage: | 360° Full Coverage |
| Positioning Method: | Single Station Drone/target Precise Positioning And Trajectory Tracking | Main Unit Weight: | ≤35 Kg |
| Highlight: | 10KM FPV Drone Jammer,Detection Drone Jammer,Comprehensive Protection Drone Jammer |
||
Product Description
FPV Drone Jammer Advanced Drone Detection and Jamming System for Comprehensive Protection
Technical Specifications
| Parameter | Description |
|---|---|
| Detection Range | 30 MHz ~ 6 GHz |
| Key Frequency Bands | 2.4 GHz, 5.2 GHz, 5.8 GHz, 433 MHz, 900 MHz, 1.4 GHz (Other frequency bands configurable) |
| Detection Radius | 3-10 km (varies by drone model; internal military model differences may exist) |
| Response Time | ≤2 s |
| Detection Coverage | 360° full coverage |
| Measurement Accuracy | ≤1° (RMS) |
| Simultaneous Detections | ≥30 targets |
| Positioning Method | Single station drone/target precise positioning and trajectory tracking |
| Positioning Accuracy | ≤3 m (RMS) |
| Wideband Jamming | Supported |
| Jamming Frequency Bands | 2.4 GHz, 5.2 GHz, 5.8 GHz, 1.5 GHz, 0.9 GHz (Other frequency bands configurable) |
| Jamming Radius | 1~3 km (varies by drone model; internal military model differences may exist) |
| Precision Attack | Supported |
| Attack Frequency Bands | 2.4 GHz, 5.8 GHz |
| Attack Radius | 1~3 km (varies by drone model; internal military model differences may exist) |
| Protection Level | IP66 |
| Main Unit Weight | ≤35 kg |
Product Features
-
Passive Detection: The system can identify drone signals and their electronic signatures (such as serial numbers) without emitting any electromagnetic signals.
-
Accurate Positioning: Precisely locate drones or flying targets, including trajectory tracking.
-
Target Identification: Recognizes different models and frequency bands of various drones.
-
Precision Attack: Supports precise attack on specified signals, frequency bands, or specific drones among multiple targets.
-
Blacklist/Whitelist Function: One-button switching to allow or block specific drones, ensuring unapproved drones are jammed while approved drones remain unaffected.
-
Compatibility: Supports most mainstream drone models, including WiFi drones, hobby drones, fixed-wing, and DIY drones.
-
Applications: Suitable for military zones, public security, government agencies, airports, power stations, high-altitude sites, large events, and other security scenarios.
-----------------------------------------------
For more technical support, please contact us now! !
