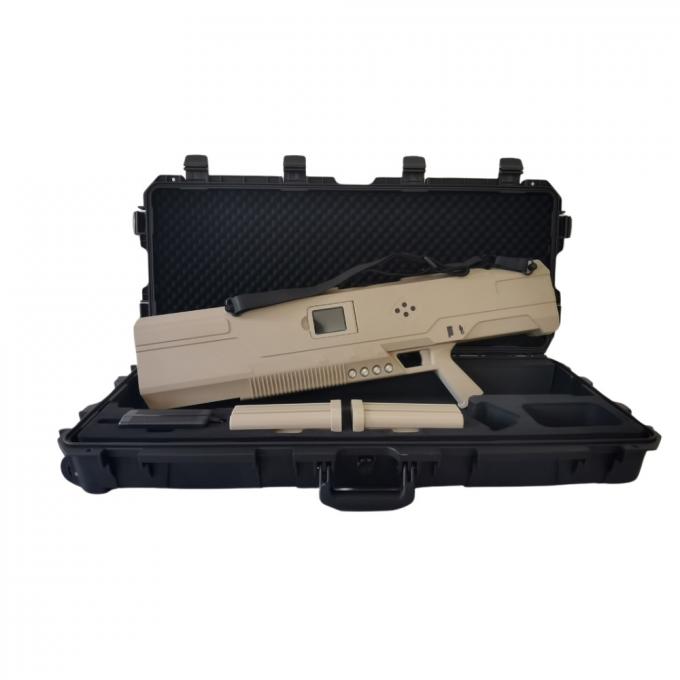

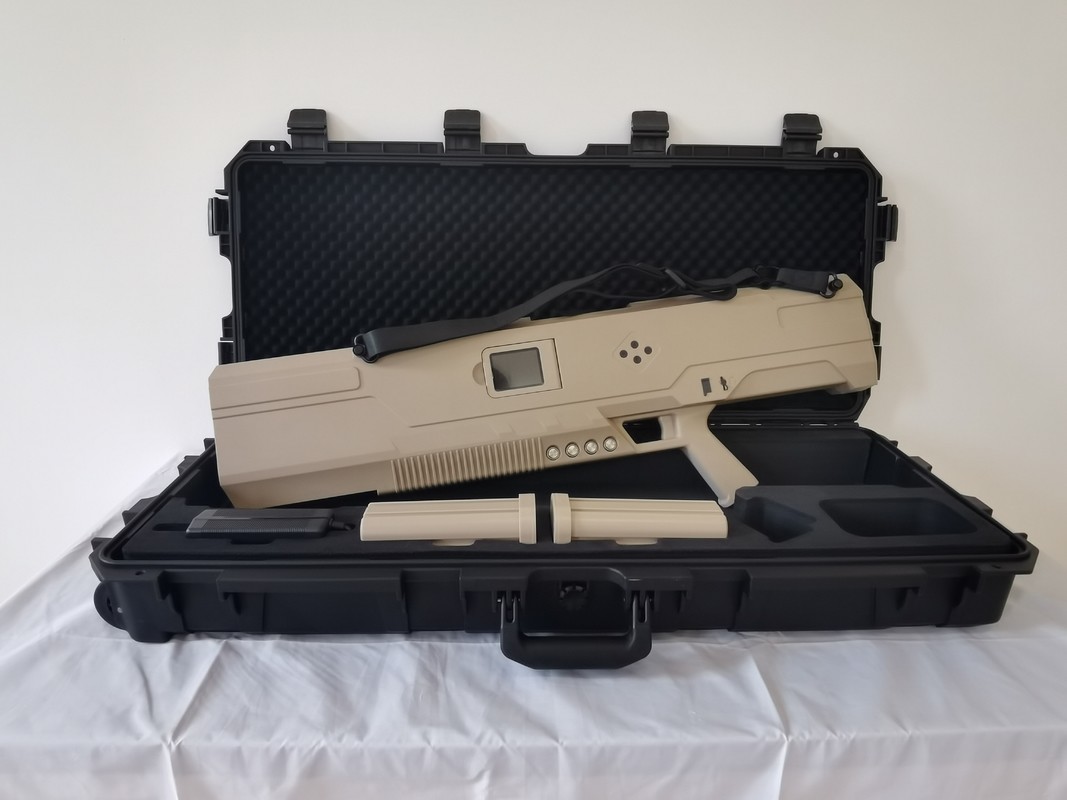

Direction Finding Networked Positioning Counter Drone Gun System Detection Strike Integration
| Place of Origin: | China |
| Brand Name: | EagleX or can be customized |
| Certification: | CE, FCC |
| Minimum Order Quantity: | 1pc |
| Delivery Time: | 7days |
| Payment Terms: | LC,TT,CAD,Alipay |
| Supply Ability: | According to the project |
|
Detail Information |
|||
| Place of Origin | China | Brand Name | EagleX or can be customized |
|---|---|---|---|
| Certification | CE, FCC | Operating Mode: | Radio Interference |
| Targets: | Flight Control Link, Navigation Signals | Operating Frequencies: | 900MHz, 1.5GHz, 2.4GHz, 5.8GHz |
| Effective Distance: | 1 - 1.5 Km (varies Depending On The Environment And Model) | Endurance Time: | ~30 Minutes (continuous) |
| Dimensions: | LWH: (850mm292mm88mm) ±5mm | Weight: | ~5.5kg (including Battery) |
| Highlight: | Networked Positioning Counter Drone Gun,Direction Finding Counter Drone Gun,Counter Drone Gun System |
||
Product Description
Detection And Strike Integration Real-Time Display Direction Finding Networked Positioning Counter Drone Gun System
| Parameter | Details |
| Operating Mode | Passive detection |
| Operating Frequencies | 900MHz, 1.4GHz, 2.4GHz, 5.8GHz |
| Detection Positioning Distance | 1 - 2 km (varies depending on the environment and model) |
| Direction Finding Accuracy | 20° (RMS) |
| Endurance Time | ~6 hours |
- Overview
This product is a portable "detection and strike integrated" drone control device that uses spectrum sensing and radio interference technologies to achieve drone detection, early warning, identity recognition, target direction finding, position acquisition, and interference handling.
- Features
Detection and Strike Integration:
After detecting and locking onto the drone's position, the interference mode can be immediately activated to effectively handle the target.
Wide Model Recognition:
Capable of recognizing mainstream models such as DJI, Autel, as well as self-made, WiFi, and racing drones.
Real-time Display:
Features a foldable screen design that displays target status information in real-time.
Detection and Direction Finding:
Can detect the direction of the drone and display the results through a graphical interface.
Networked Positioning:
Can be connected to a control platform to achieve equipment location positioning feedback.
Diverse Handling Modes:
Directional emission of interference signals, with options for expulsion or forced landing modes.
Mobile Response:
Portable for individual soldiers, ready to use upon startup.
Strong Endurance:
Removable battery design for long-term operations.
- Applicable Scenarios
The equipment is suitable for drone control operations in major security tasks, park inspections, border defense, coastal defense, and other scenarios.
- Positioning Function
Drone Positioning: Can display the drone's position in real-time.
Pilot Positioning: Can display the pilot's position in real-time.
