Modified Toyota Land Cruiser Anti-Drone Jammer Vehicle Full-Frequency DJI FPV Signal Jamming For Military Police Patrol
| Place of Origin: | China |
| Brand Name: | EagleX or can be customized |
| Certification: | CE, FCC |
| Model Number: | EXWF-30C |
| Minimum Order Quantity: | 1pc |
| Delivery Time: | 7days |
| Payment Terms: | LC,TT,CAD,Alipay |
| Supply Ability: | According to the project |
|
Detail Information |
|||
Product Description

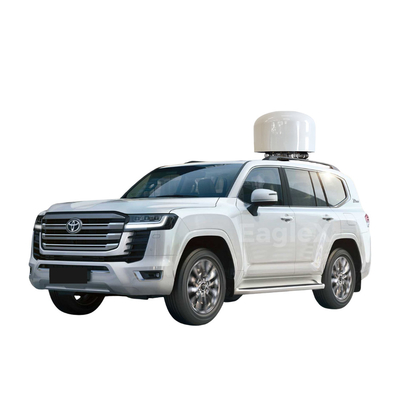

Modified Toyota Land Cruiser Anti-Drone Jammer Vehicle Full-Frequency DJI FPV Signal Jamming For Military Police Patrol
The EXWF-30C Vehicle-Mounted Anti-Drone System utilizes advanced radio spectrum technology, integrating collaborative spectrum sensing and deep neural networks. This innovative communication system, based on full-spectrum spread spectrum frequency hopping algorithms and signal capture recognition algorithms, leverages disruptive AI innovations in electronic communication to achieve the identification and signal recording of unknown drones. Using radio interference and blocking technology, it effectively controls long-distance rogue drones.
Device Parameters
| Device Parameters | Details |
|---|---|
| Protection Level | IP65 |
| Dimensions | 682mm*538mm*369mm |
| Weight | 25KG |
| Maximum Power Consumption | Frequency Band Countermeasure <750W |
| Operating Temperature | -30°~60° |
Interference Frequency
| Interference Frequency Band | Drone Brands and Types |
|---|---|
| 900M | DJI, Autel Robotics (GPS, FPV) |
| 1.2G | DJI, Autel Robotics (Video Transmission, FPV) |
| 1.5G | DJI, Autel Robotics (Control Signal, FPV) |
| 2.4G*2 | DJI, Autel Robotics (Control Signal, Video Transmission, FPV) |
| 5.2G | DJI, Autel Robotics (Video Transmission, FPV) |
| 5.8G*2 | DJI, Autel Robotics (Video Transmission, Control Signal, FPV) |
Power Supply System
- Supports placing two UPS power supplies in the vehicle for alternating power supply
- Supports small generators
EagleX can also design a plan based on your existing car, please contact us!
Technical Parameters
| Detection Parameters | Details |
|---|---|
| Detection Range | 50MHz~6GHz |
| Detection Radius | ≥5000m (Depending on conditions) |
| Real-time Processing Bandwidth | 160MHz |
| Distance Measurement Accuracy | ≤10%R |
| Horizontal Range | 0-360° |
| Simultaneous Detection Quantity | ≥10 units |
| Interference Parameters | Details |
|---|---|
| Interference Method | Directional |
| Interference Frequency Bands | 900M, 1.2G, 1.5G, 2.4G*2, 5.2G, 5.8G*2 (Other frequency bands can be customized) |
| Countermeasure Distance | 1000m-2000m (Depending on conditions) |
| Response Time | ≤3s |
Product Advantages
Integrated Detection and Interference: Built-in integration of detection and interference.
Full-Frequency Detection: Passive detection, 50MHz-6GHz ultra-wide spectrum, can identify drones with 40M bandwidth.
Learning Capability: Supports autonomous learning and identification of unknown drones, including image transmission, frequency hopping signals, and FPV drones.
Full-Frequency Interference: Covers 95% of the drone communication and navigation frequency bands on the market, with good directional countermeasure effects.
Signal Recording: Open model library recording, capable of detecting, learning, and recording new drone models in the air.
Patented Design: Multi-antenna array design, intelligent gain, and reference level patent design, suitable for complex environments.
Networking Function: Supports networking with other radars, deception devices, and omnidirectional countermeasure equipment.
Applicable Vehicle Models
| Brand | Model |
|---|---|
| Toyota | Prado (PRADO) |
| Toyota | Land Cruiser |
| Mitsubishi | Pajero |
| Ford | F150 |
| GMC | General Model |
| Hummer | General Model |
| Iveco | General Model |
| Ford | F350 |
| Ford | Transit |
| Toyota | Highlander |
| Jeep | Cherokee |
Operating System
- Whitelist: Available
- Unattended: Supported
- Historical Track Playback: Supported
- Signal Recording: Supported
- Single Station Positioning: AOA
- Audio and Visual Alarm Function: Available
