2000M 6 Frequency Anti FPV Drone Jammer Backpack Style Drone GPS Jamming
| Place of Origin: | China |
| Brand Name: | EagleX or can be customized |
| Certification: | CE, FCC |
| Model Number: | EXXY6G-2 |
| Minimum Order Quantity: | 1pc |
| Delivery Time: | 7days |
| Payment Terms: | LC,TT,CAD,Alipay |
| Supply Ability: | According to the project |
|
Detail Information |
|||
| Place of Origin | China | Brand Name | EagleX or can be customized |
|---|---|---|---|
| Certification | CE, FCC | Model Number | EXXY6G-2 |
| Drone Interference Distance: | 500-2000m | Working Hours: | 30 Mins (duration Of Launch) |
| Interference Frequency: | 433M 900M 1.2G 1.5G 2.4G 5.8G | Omni-directional Countermeasures: | 500-1500m |
| Direction Of Defense: | Omnidirectional 360° | Whole Machine Power: | 300W(can Be Customized) |
| Highlight: | 6 Frequency Anti FPV Drone Jammer,2000M Anti FPV Drone Jammer,Backpack Style Drone GPS Jamming |
||
Product Description
2000M 6 Interference Frequency Bands Anti FPV 433M 900M 1.2G 1.5G 2.4G 5.8G Drone Jammer UAV Signal GPS Backpack-Style
As drones become more popular, they are used in many parts of our lives. But drones can also cause problems, like flying in no-fly zones, being used for illegal activities, and in wars. This anti-drone backpack helps deal with these problems by driving away or forcing drones to land when they are in sight.

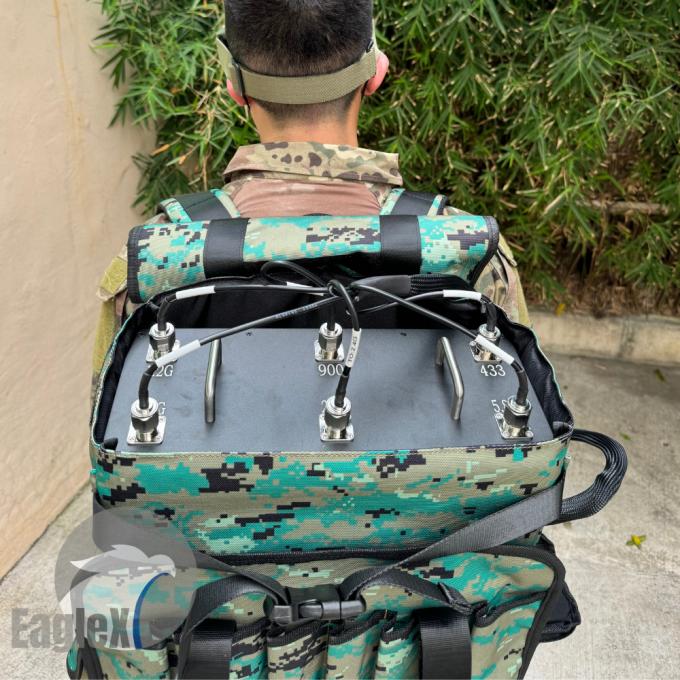

This backpack is custom-made based on what customers need. It is easy to carry, has a built-in battery, and can be used anywhere. It also comes with two types of antennas: an external omnidirectional antenna and an internal panel antenna, to meet different needs.
EXXY6G-2 Anti-drone backpack Features
- Backpack Design: Easy to carry, looks good, customizable color.
- Removable Battery Design: Easy to replace and transport.
- Single Channel Switch Control: Easier operation.

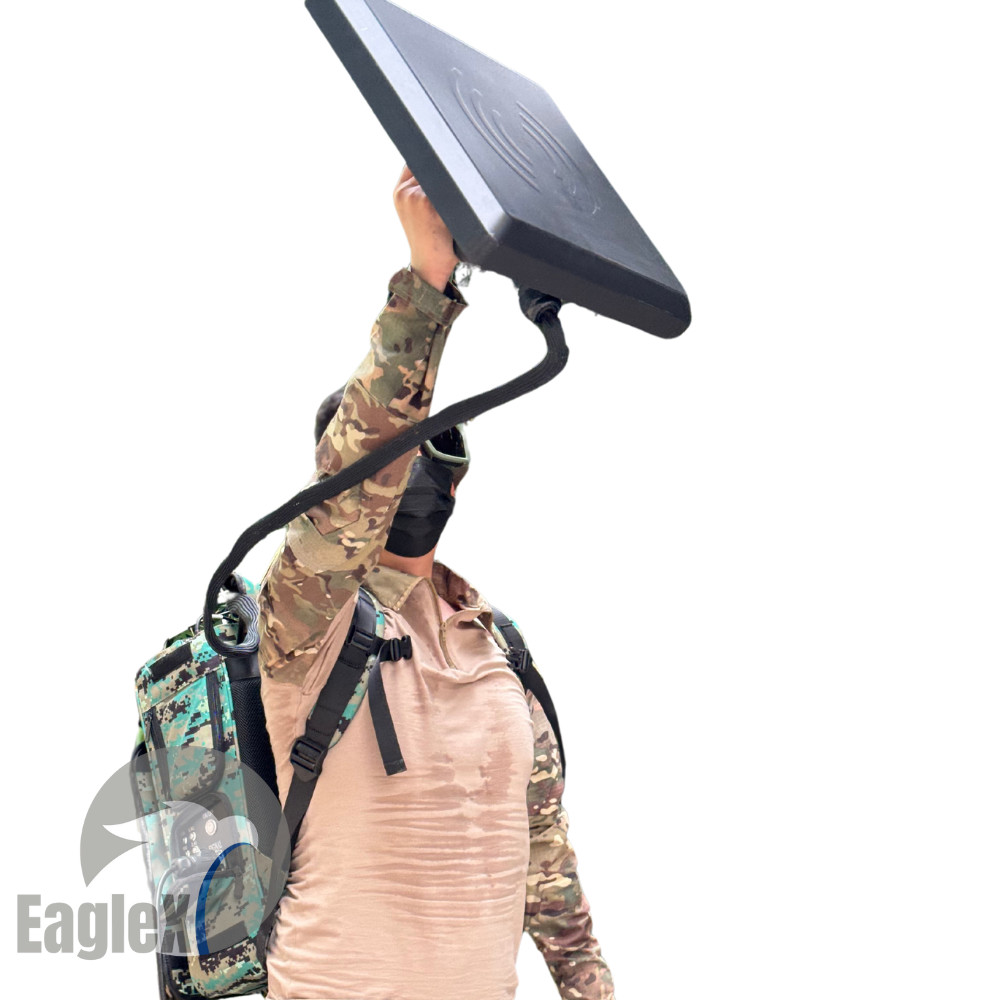

- Multiple Antenna Modes: Comes with external omnidirectional and handheld directional antennas to meet different needs.
- Optimized Antenna: Better jamming range.
- Excellent Cooling: Aluminum shell with aluminum heat sinks for better cooling and more stable performance.
- Battery Display Screen: Easily check battery status.
Product Parameters
| Output | Frequency | Average Output Power | Channel Output Power |
|---|---|---|---|
| 433M | 428-438MHz | 30W/45dbm, 50W/47dbm, 70W/48.5dbm, 100W/50dbm | 20dbm/30KHz (min) |
| 900M | 860-930MHz | 30W/45dbm, 50W/47dbm, 70W/48.5dbm, 100W/50dbm | 20dbm/30KHz (min) |
| 1.2G | 1160-1280MHz | 30W/45dbm, 50W/47dbm, 70W/48.5dbm, 100W/50dbm | 20dbm/30KHz (min) |
| 1.5G | 1550-1620MHz | 30W/45dbm, 50W/47dbm, 70W/48.5dbm, 100W/50dbm | 20dbm/30KHz (min) |
| 2.4G | 2400-2500MHz | 30W/45dbm, 50W/47dbm, 70W/48.5dbm, 100W/50dbm | 20dbm/30KHz (min) |
| 5.8G | 5725-5850MHz | 30W/45dbm, 50W/47dbm, 70W/48.5dbm, 100W/50dbm | 20dbm/30KHz (min) |
The above parameters can be customized according to specific project needs.
EXXY6G-2 Anti-drone backpack Instructions
- Check the equipment appearance for any damage and verify that all accessories are included as per the product list.
- Attach the antennas to the device according to the labels.
- Connect the control handle to the main unit.
- Turn on the battery display button to check if the battery is fully charged.
- Press all function buttons, and the indicator light will turn on, indicating the device is working.
- Hold the handle and aim at the direction of the drone to be countered.
- After 30 seconds, the jamming device will take effect, and the drone will be driven away or forced to land.
- After jamming, press the function button again to turn off the indicator light.
