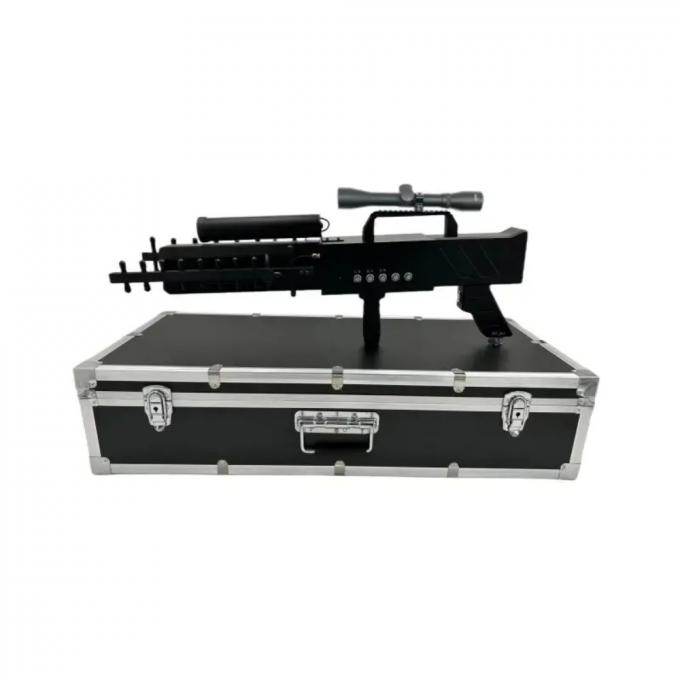

2KM Drone Jamming Gun 1.5G 2.4G 5.8G 5.2G 800M 900M 1.2G 433M FPV Drone Jammer
| Place of Origin: | China |
| Brand Name: | EagleX or can be customized |
| Certification: | CE, FCC |
| Minimum Order Quantity: | 1pc |
| Delivery Time: | 7days |
| Payment Terms: | LC,TT,CAD,Alipay |
| Supply Ability: | According to the project |
|
Detail Information |
|||
| Place of Origin | China | Brand Name | EagleX or can be customized |
|---|---|---|---|
| Certification | CE, FCC | Band: | 5-Band/ 6-Band/ 8-Band/ |
| Output Power: | 100W~120w | Battery Capacity: | 90-120mins(without Backup Battery) 1. 29.4V 7000mAh Li-Polymer Battery 2. 29.4V 10.5AH Li-Polymer (backup Battery) |
| Working Temperature: | -20ºC To +55ºC | Highlight: | 2KM Drone Jamming Gun,1.5G Drone Jamming Gun,433M FPV Drone Jammer |
Product Description
2KM Anti-FPV Jamming Distance 8-Channel 1.5G, 2.4G, 5.8G, 5.2G, 800M, 900M, 1.2G, 433M Drone Jammer Gun
Frequency Bands and Target Devices
| Frequency Band | Target Devices |
|---|---|
| 1.5G | Drone Control Signals |
| 2.4G | Wi-Fi, Drone Control Signals |
| 5.8G | Wi-Fi, Drone Control Signals |
| 900M | Drone Navigation Systems |
| 1.2G | Drone Control Signals |
| 433M | Long-Range Drone Control |
| 5.2G | Wi-Fi, Drone Control Signals |
| 800M | Drone Navigation Systems |
The 1.2G, 2.4G and 5.8G frequency bands are mainly used for FPV (first-person view) drones.
These frequency bands are usually used in the image transmission system of FPV drones to provide real-time video transmission. Among them, the 5.8G frequency band is the most commonly used frequency band because it can provide higher image transmission quality and lower latency. The 2.4G frequency band is also widely used in FPV drones, but since it is also used for remote control signals, it may be interfered with in some cases. The 1.2G frequency band is usually used for long-distance FPV flights, has strong penetration capabilities, and is suitable for use in complex environments.
8-band: 1.5G, 2.4G, 5.8G, 5.2G, 800M, 900M, 1.2G, 433M
In terms of battery capacity, the device can work continuously for 90 to 120 minutes without using a backup battery. The device comes standard with a 29.4V 7000mAh lithium polymer battery, and a backup battery (29.4V 10.5AH lithium polymer battery) can also be selected.
The device size is 715mm x 175mm x 256mm and weighs about 4.3kg (5-band configuration). The operating temperature range is wide, from -20℃ to 55℃, adapting to various environmental conditions.
The product packaging can be a carton or an air box.
