20W/30W/40W/50W Jammer Module 400MHz 433MHz 440MHz RF Amplifier Module

• Overview

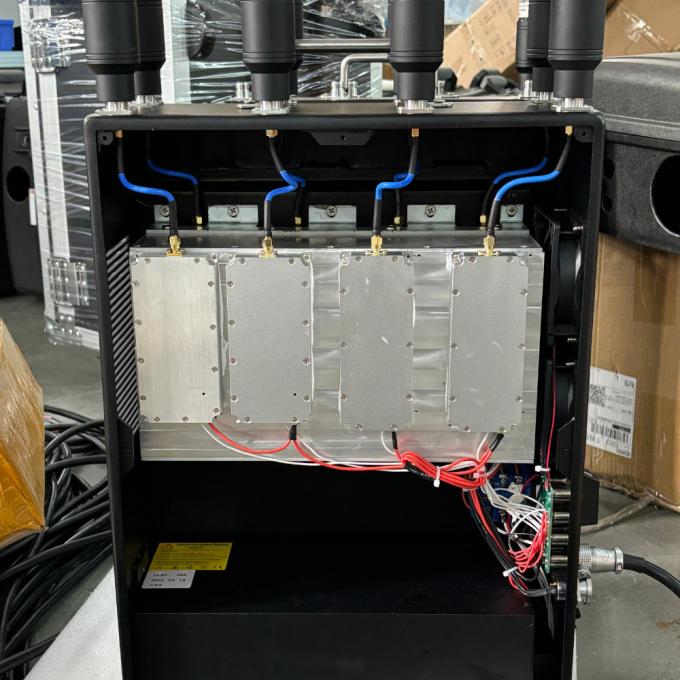

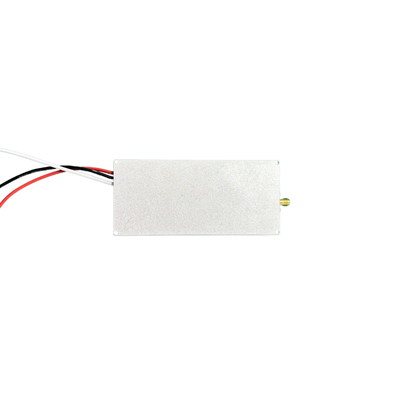

The 433 MHz anti-drone RF module output power can be from 20W to 50W, and even 100W can be made. We can provide the versatility required for various operational scenarios. The module is compact, with dimensions of 12.5 cm x 6 cm x 2 cm and a weight of only 0.28 kg, making it easy to operate and integrate into anti-drone systems, such as anti-drone backpacks or anti-drone guns.

The module operates at 28V and requires a current between 2A and 5A, ensuring stable performance. The output is connected via an SMA connector.

Efficiency is a key reference indicator, and the power amplification efficiency of the module reaches 40%. It can operate normally in extreme temperatures, ranging from -30°C to +65°C, ensuring that it can work in various environmental conditions. The output standing wave ratio is maintained at ≤ 1.5, ensuring efficient signal transmission and minimal losses.

Control options include power switch control with high and low level settings for precise operation. The module's performance is stable, with a flatness grade of ±1 dB, ensuring reliable and stable output over the entire operating range.

If you need to customize RF modules with more frequencies and different powers, please contact us.
