5.8GHz RF Amplifier Module 5725-5850MHz Amplifier Jamming Radio Frequency Module
| Place of Origin: | China |
| Brand Name: | EagleX or can be customized |
| Certification: | CE, FCC |
| Model Number: | EXLY-A5800W |
| Minimum Order Quantity: | 1pc |
| Delivery Time: | 7days |
| Payment Terms: | LC,TT,CAD,Alipay |
| Supply Ability: | According to the project |
|
Detail Information |
|||
| Place of Origin | China | Brand Name | EagleX or can be customized |
|---|---|---|---|
| Certification | CE, FCC | Model Number | EXLY-A5800W |
| Output Power:: | ≥100W | Dimensions: | 17.5 X 8.4 X 2.4 Cm |
| Weight: | 0.74 Kg | Operating Voltage: | 28V |
| Highlight: | 5.8GHz RF Amplifier Module,Jamming Radio Frequency Module,5850MHz Radio Frequency Module |
||
Product Description

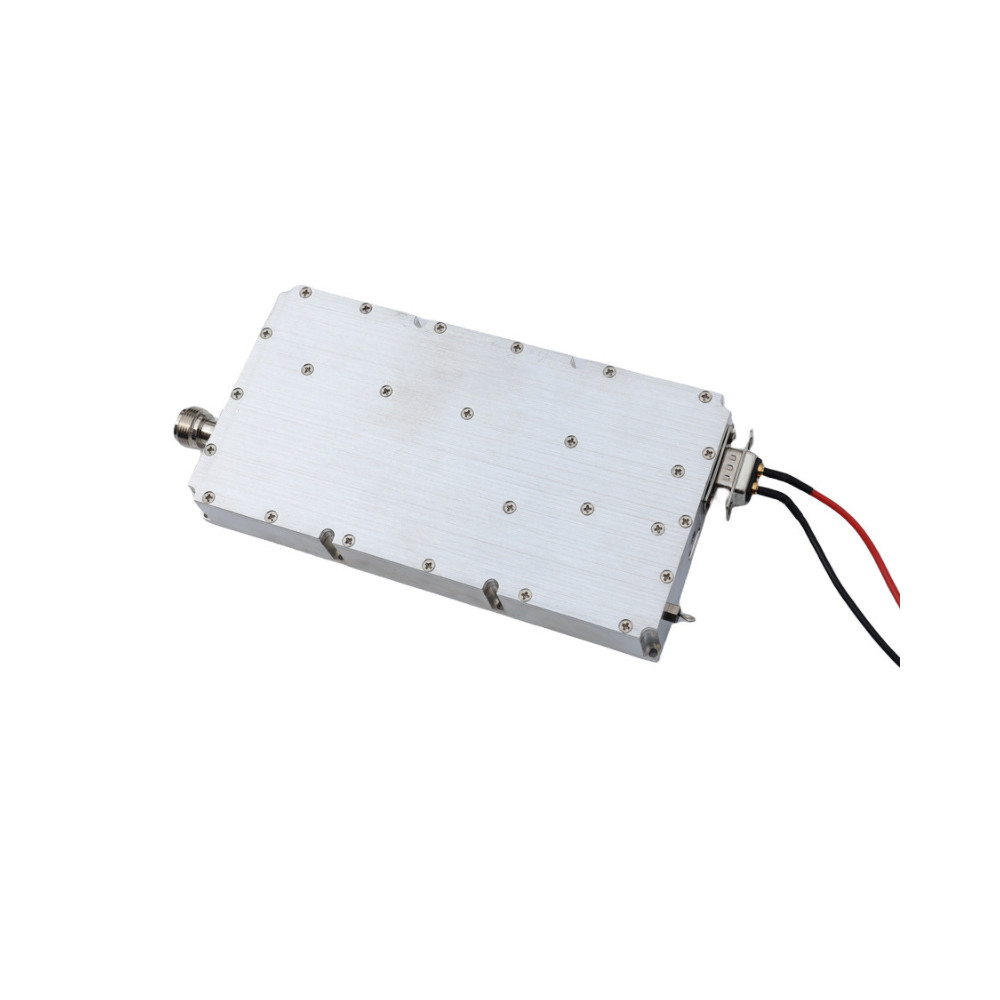

100W 5.8G 5.8GHz Power RF Module 5725-5850MHz Amplifier Jamming Radio Frequency Anti DJI FPV RF Drone Module
The EXLZ-XT drone countermeasure RF module is specifically designed to interfere with and eliminate unauthorized drone activities operating in the 5.8GHz frequency band. The module has a 100W output power to ensure effective interference and provide stable and reliable operation in various environmental conditions. It is an important component of advanced security and defense systems, providing high performance in a compact and lightweight design.
Key Features
Frequency Range:5725-5850MHz
Output Power: ≥100W
Dimensions: 17.5 x 8.4 x 2.4 cm
Weight: 0.74 kg
Operating Voltage: DC 28V
Current: 9 ± 1A
Output Connector: N-type
Efficiency: 40-50%
Operating Temperature: -30°C to +65°C
VSWR: ≤ 1.5
Control Signal: High and low level control
Flatness: ± 1dB
